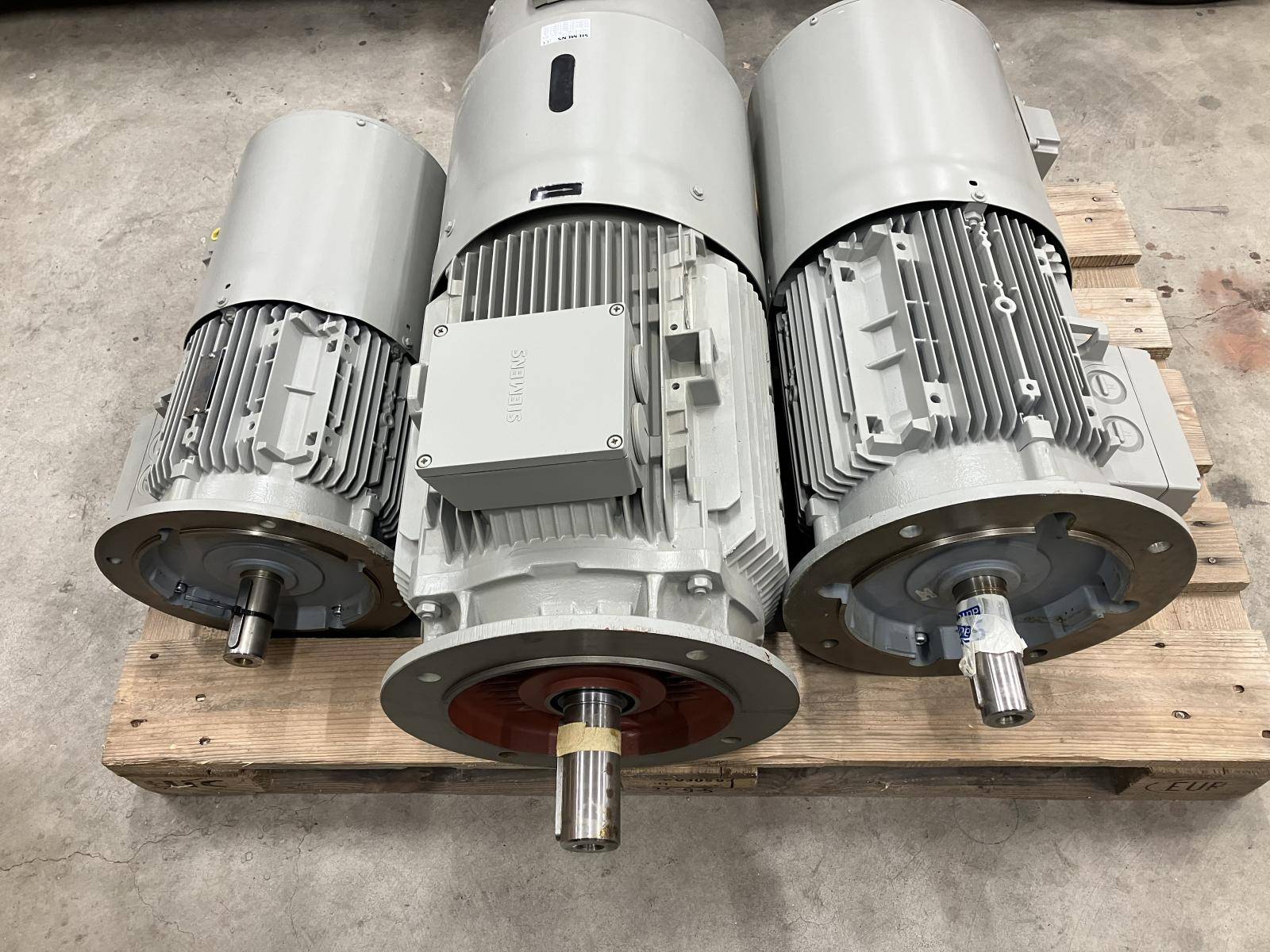

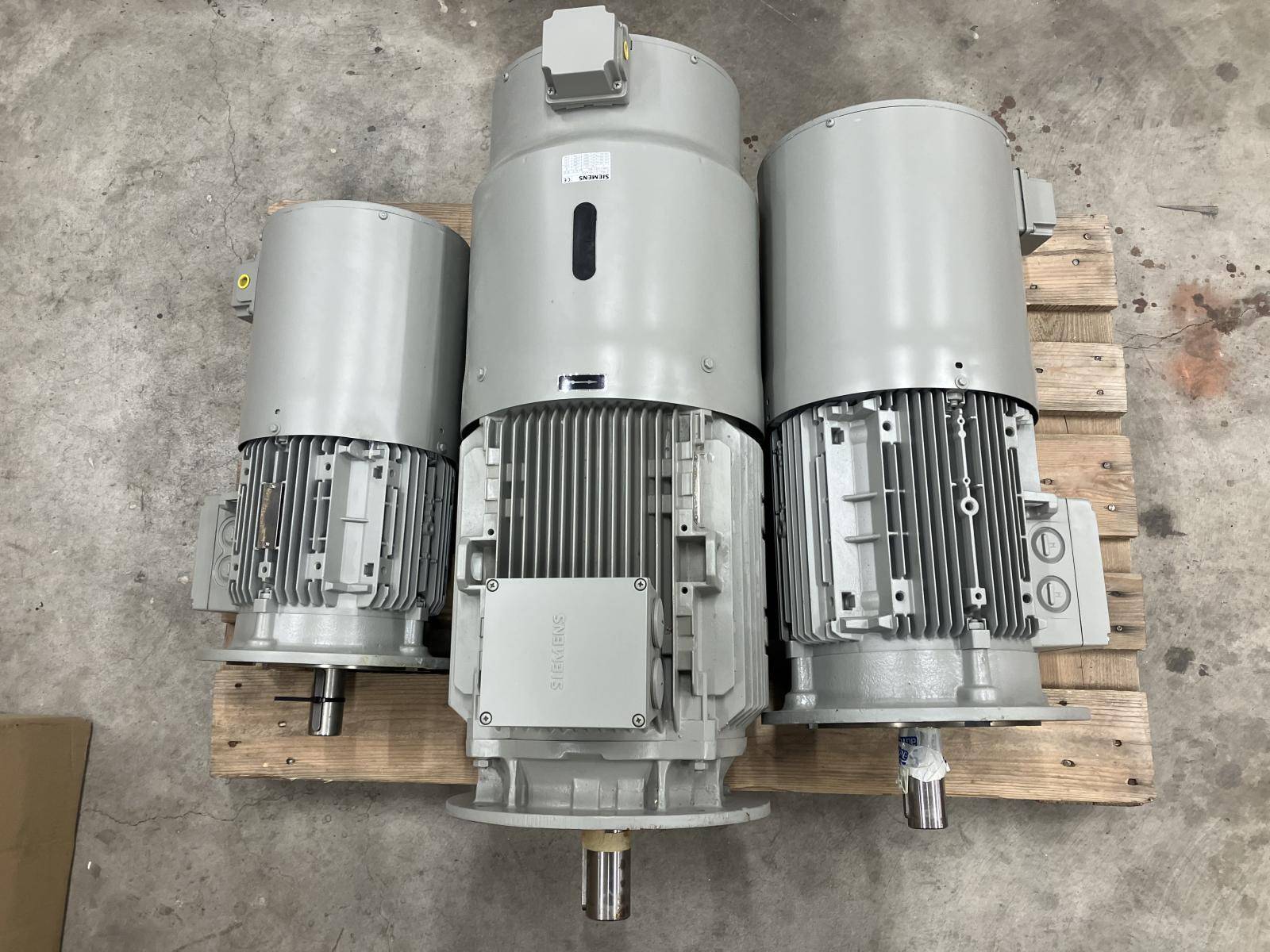

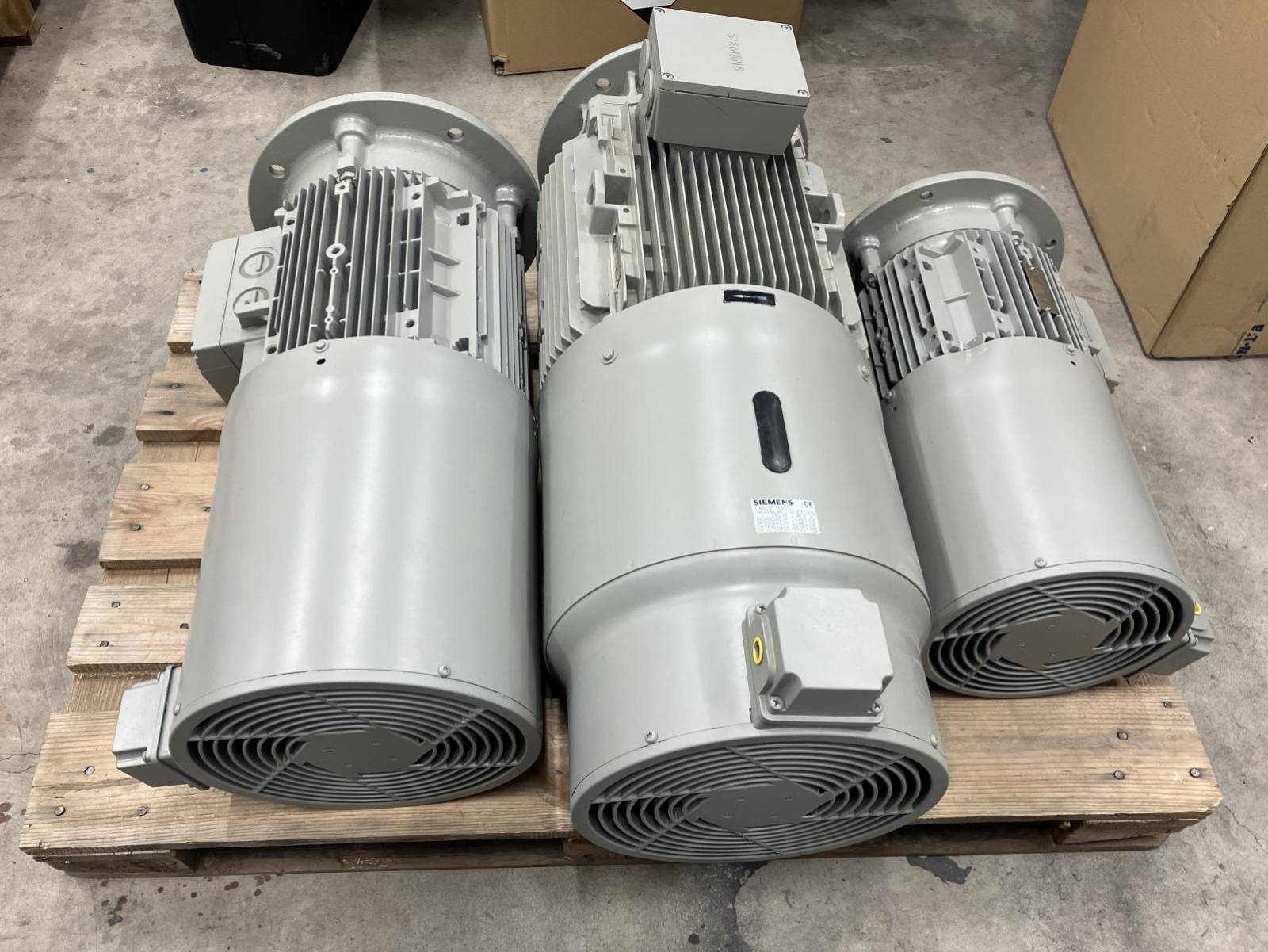

Motore SIEMENS 3 Motoren/ 3 motors
Articoli
Fabbricante | SIEMENS |
Sottocategoria di macchine | Motore |
Cod. art. | 17049 |
Disponibilità | Su richiesta |
Dati tecnici
Numero | 3 |
Velocitá rotazione max | 1.460 g/min |
Motore principale Kw | 22 kW |
Certificazione CE |
ulteriori informazioni
Voltage range:
-220-240 V in delta connection
-380-420 V in star connection
1st motor, IM B5 160M IP55:
- 11KW at 50 Hz
- max. speed 1460 rpm
- Weight: 84kg
2nd motor, IM B5 180L IP55:
- 22kW at 50Hz
- max. speed 1460 rpm
- Weight: 141kg
3rd motor, IM B5 132M IP55:
- 7.5kW at 50Hz
- max. speed 1455 rpm
- Weight: 56kg
